Ectocore
A breakbeat sample mangler for Eurorack that streams, slices, sequences, and effects samples from SD card in real time.
$429
USD
4.9
45 reviews
Details
Ectocore is an algorithmic sample mangler for Eurorack, based on the open-source zeptocore by Infinite Digits. It streams audio directly from the included SD card, chopping, slicing, sequencing, and effecting samples in real time.
Check out the fantastic intro video by The Sound Convergence on Youtube.
Fill the card with anything

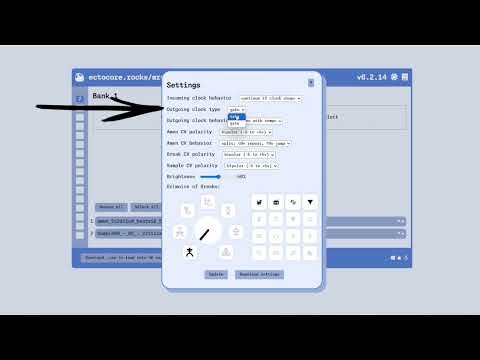

Use the browser-based Ectocore Sample Manager to prepare sounds without installing an app. Each of the 16 banks holds up to 16 samples, with no limit on sample length. Slice evenly, find transients automatically, or place slices by hand. Kick, snare, and transient markers can send pulses from the trigger output as playback crosses them.
The included SD card arrives with sounds from Pete Cannon, DivKid, Moe Shop, and others. Replace them, rearrange them, or fill the card with vocals, field recordings, melodies, breakbeats, or whatever else deserves to be pulled apart.
Let the sequence wriggle
The Amen knob runs a looping sequencer inspired by runglers and Turing machines. Turn it clockwise to move from straight playback toward repeating patterns and fresh permutations. Jump controls how likely the playhead is to move elsewhere, and whether it returns after the jump.
Break sets the probability that effects will fire. Grimoire selects one of seven mappings built from 16 real-time effects, while the shifted controls add volume, saturation, distortion, a DJ filter, gating, pitch shifting, and beat repeat. The useful part is that Ectocore can stay recognizable for a while, then become completely unreasonable with one turn.
Put it in the rack
Amen, Break, and Sample accept configurable control voltage, so Ectocore can follow precise modulation or react to triggers from elsewhere in the system. The 2 PPQN clock input keeps playback synchronized and automatically repitches samples to the incoming tempo. Clock output can divide or multiply the pulse, and the trigger output can follow kicks, snares, detected transients, or random events.
Ectocore is open source. Firmware, hardware files, and the code it inherited from the zeptocore are available in the Infinite Digits _core repository.

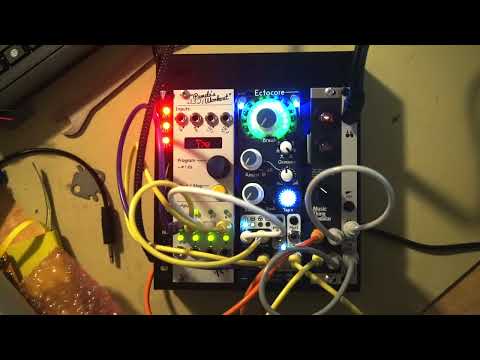

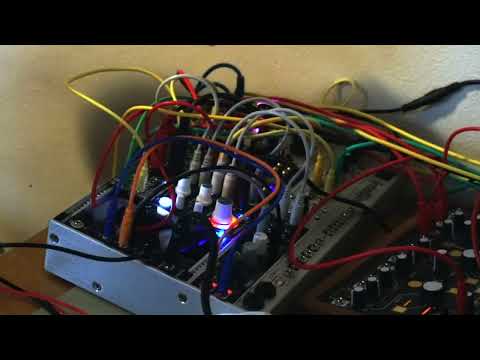

Videos
4 videosSpecifications
- Width: 8 HP
- Stereo audio: 16-bit, 44.1 kHz
- Sample storage: included SD card
- 16 banks with up to 16 samples per bank
- No sample length limit
- Browser-based sample preparation with even, transient, and manual slicing
- Kick, snare, and transient markers for trigger generation
- Amen looping sequencer inspired by runglers and Turing machines
- Jump probability control with return and non-return behavior
- 16 real-time effects arranged across seven Grimoire mappings
- Master controls for volume, saturation, distortion, DJ filtering, gating, pitch shifting, and beat repeat
- Amen, Break, and Sample CV inputs
- Configurable unipolar 0 to 5 V or bipolar -5 to +5 V CV response
- Optional reset input configured through the sample manager
- 2 PPQN clock input with automatic tempo matching
- Clock output with division and multiplication
- Trigger output modes for kick, snare, transient, and random events
- Open-source firmware and hardware
Sold Out
Documentation
Ectocore Guide

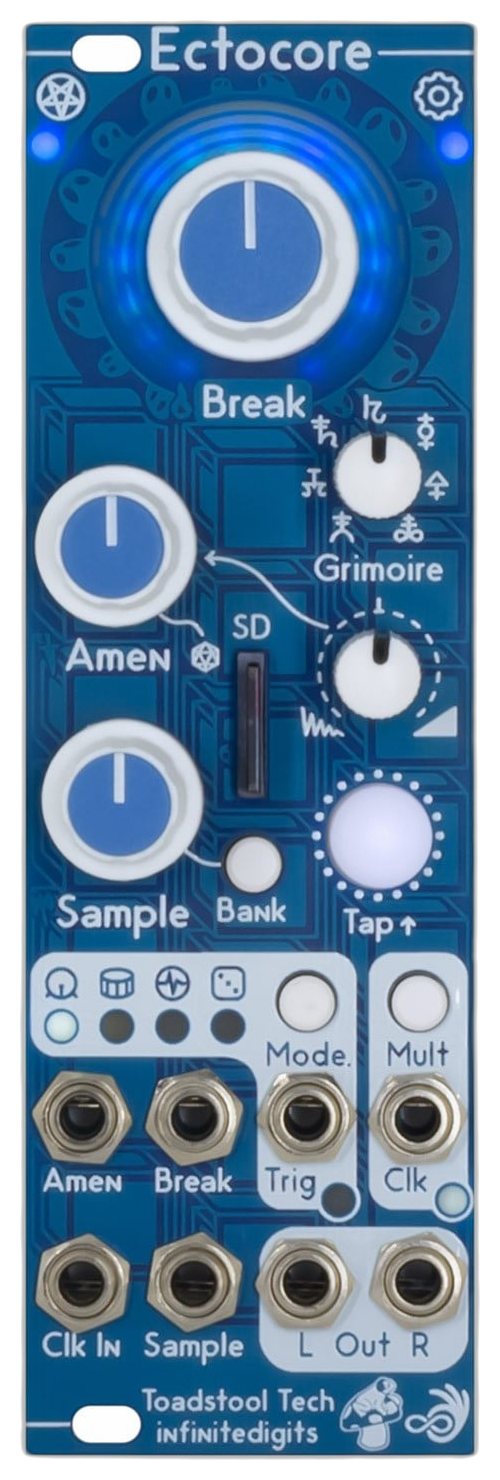

Ectocore is an 8 HP Eurorack version of Infinite Digits’ Zeptocore: a stereo sample mangler for slicing breaks, combining effects, sequencing transients, and staying locked to a modular clock.

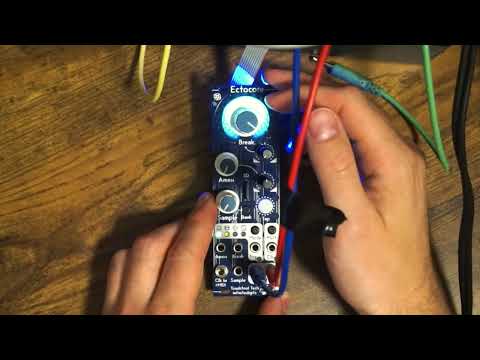

Demo
Ectocore streams stereo audio from its SD card and reshapes it in real time. Use the large Break control for immediate variation, select sounds from 16 banks, and move through curated combinations of slicing, gating, filtering, distortion, and other effects.

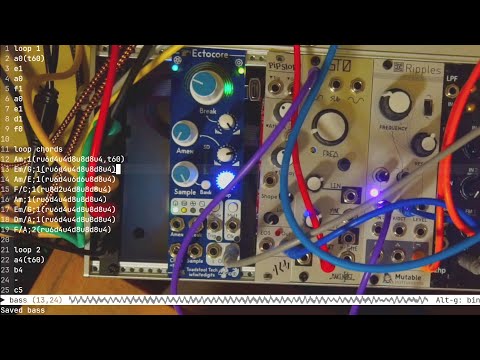

Highlights and effects
- 8 HP Eurorack module.
- Stereo 44.1 kHz audio streamed from SD card.
- 16 sound banks with voltage control over sample selection.
- 16 curated FX combinations selected by the Grimoire control.
- Algorithmic sequencing for generating new sample-slice patterns.
- Transient-specific triggering for kick, snare, and other detected events.
- Clock input and output with synchronized playback.
Source code and schematics
Ectocore is based on the open-source Zeptocore device by Infinite Digits. Explore the canonical
_core source repository
or open the
Ectocore v1.0.1 schematic directly.
Rungling and sequencing
The internal looping random sequencer is inspired by runglers and Turing machines. It can continually generate related slice patterns, balancing repetition with controlled mutation.

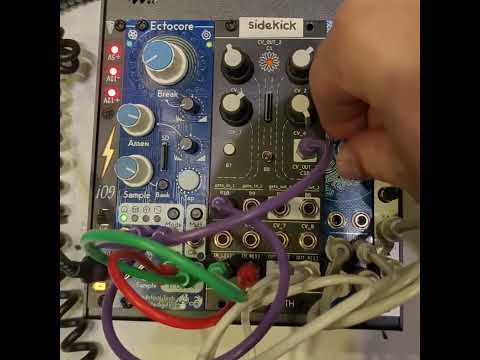

Transient sequencing
Ectocore can identify and expose transients so external triggers can address musically useful events such as kicks and snares instead of advancing through a sample blindly.

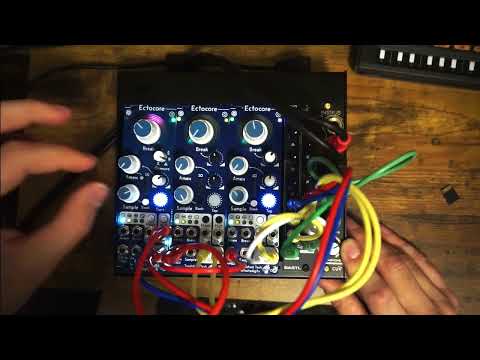

Stay in sync
Clock input keeps Ectocore aligned with a patch while automatic pitch adjustment matches the sample to the detected tempo. Clock output can pass the synchronized pulse onward to the rest of the system.
Firmware and sample tools
Use the store’s Ectocore firmware selector to choose the current clock and latency build. The existing quick-start and sample manager remains available for preparing the SD card and managing sounds.
Acknowledgments
Ectocore grew from the open-source Zeptocore platform and a wider community of hardware, firmware, and music-software work. Read the full project history and acknowledgments.
